The MEMOLUB® EPS is supplied with a 30cm wire lead that is connected to an external power source. A constant 24VDC power is supplied during periods of machine operation and will continue to follow the program until power is removed. When initial power is supplied to the MEMOLUB® EPS lubricator it will cycle once and then follow the preset program of choice. When power is turned off the lubrication cycle stops until power is reestablished.

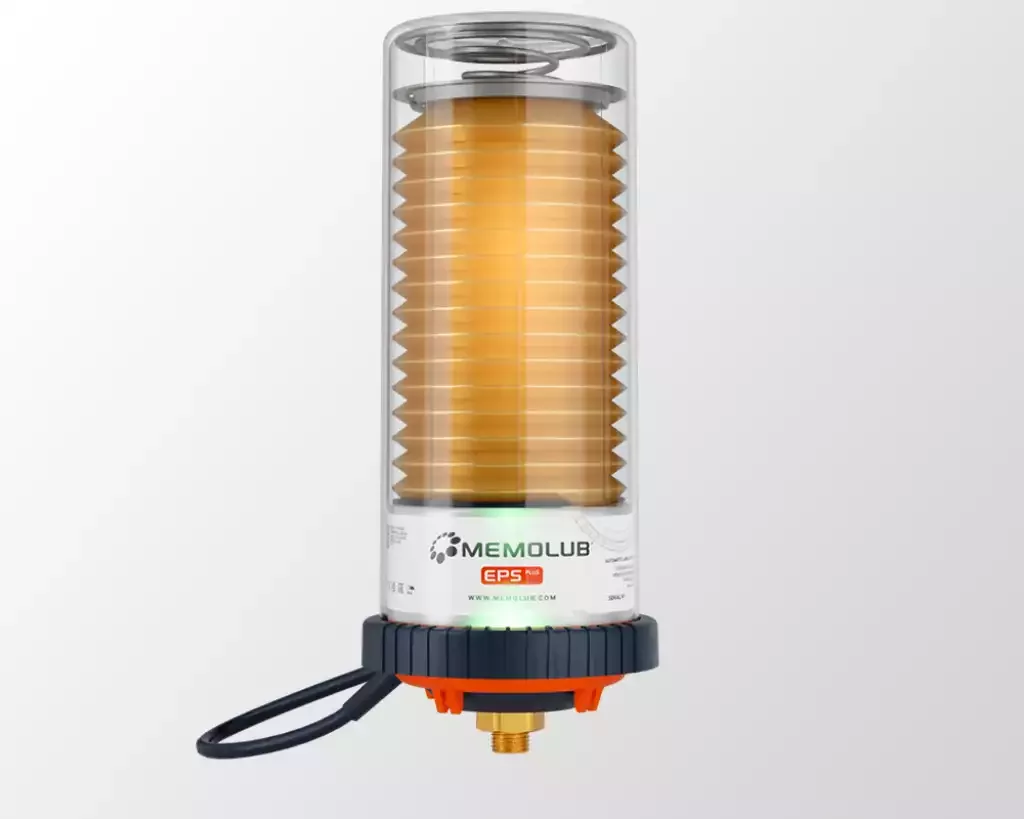

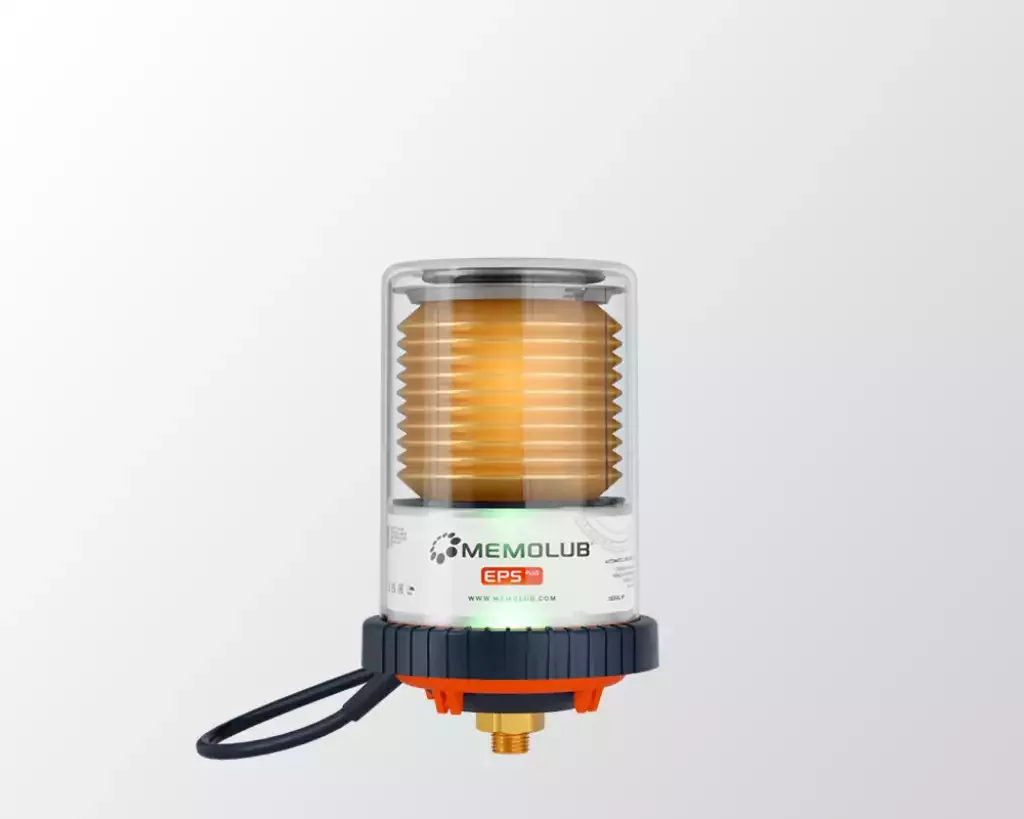

Memolub®
EPS
Lubricate on the pace of your equipment.
- Reusable single & multi-point automatic lubrication system
- 24V powered
- 25 bar ejection pressure
- Up to 8 lubrication points simultaneously
- Remote installation up to 8 m
- 49 Settings
Powered externally.
The right volume at the right frequency.
There are 7 basic frequency settings that are suitable for most industrial applications. They are programmed by installing one or a combination of the three colored timing rings into the ring holder attached to the brass fitting. When you screw the MEMOLUB® lubricator onto the brass fitting, the timing rings depress the switches on the bottom of the lubricator. The combination of the depressed switches will determine the pumping frequency. Included in the kit are eight spacer washers for adjusting the amount of lubricant discharged per pumping cycle.
A POWERFUL AND EFFICIENT PUMP
The Memolub EPS pump is engineered to deliver powerful output pressure (25bar/350psi) and is capable of pumping low- and high viscosity lubricants at extreme temperatures. Thanks to the patented electro-mechanical technology inside Memolub EPS, the system is safe for the negative consequences of back-pressure.

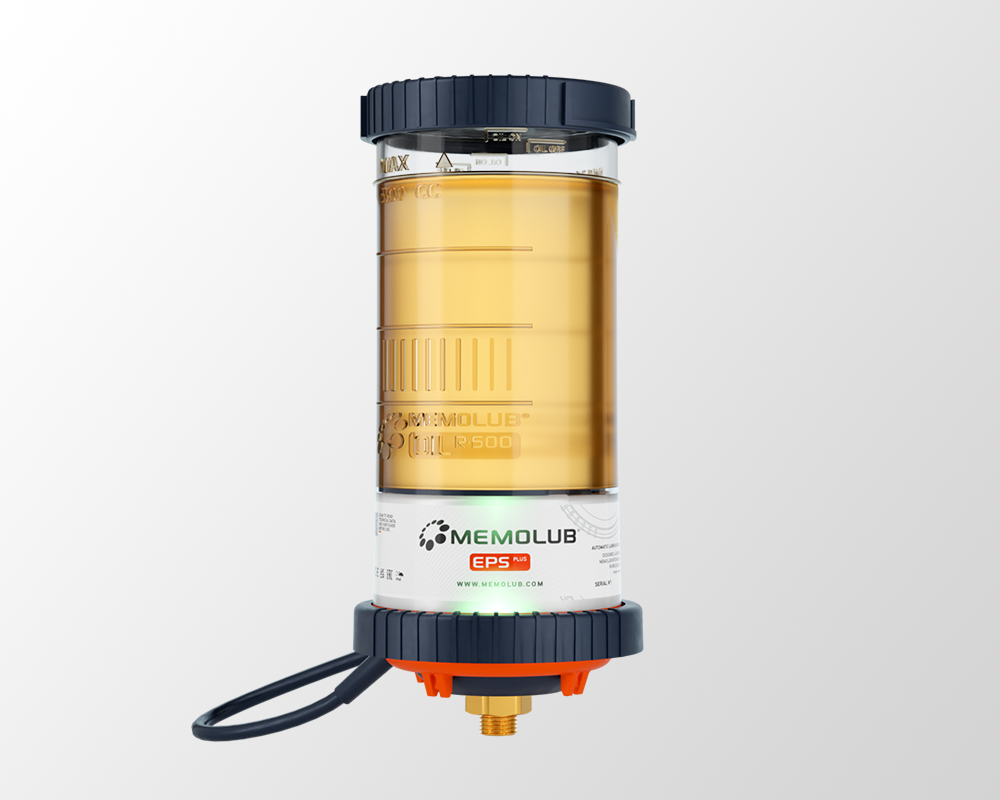

MEMOLUB® OIL R-500 compatible.
MEMOLUB® OIL R-500 is a refillable 500cc reservoir for oil applications, compatible with MEMOLUB® EPS.
